SENZ--Shenzhou: Your Professional Decanter Centrifuge Manufacturer!
Shenzhou Group is a professional in design and manufacturing, trading, and exporting company in the field of liquid and solids separation equipment, we are committed to providing customers with high-quality, safety and best performance centrifuges. We are certified to ISO 9001, CE, TUV, EAC and other international standards.
We Are The Earliest Centrifuge Manufacturer In China

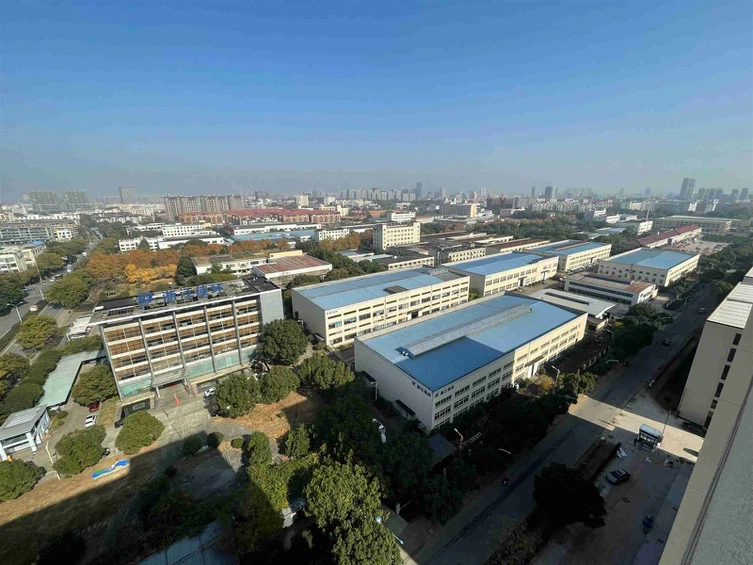

Shenzhou Group was Established In 1980, conveying an Area Of 80000M2 ,there are 2500 Staffs, 200 of them are technicians and engineers. It has obtained TUV, CE and ISO and many technology invent patent. We are on of the world's leading manufacturers of decanter centrifuge, disc centrifuge, tubular centrifuge, separation systems and drying equipment. now there are over 180 series or decanter centrifuges and disc separators used home and abroad, Including U.S.A, Canada ,Australia, Russia, Brazil, Singapore and so on totally 70 Countries.
We own various kinds of inspection and testing facilities with value Over USD10 Millio, We also welcome OEM and ODM orders.
Years of Experience
Number of Patent
Global Projects
Countries Covered
Product Categories
Latest Products
What is Decanter Centrifuge?
A decanter centrifuge (also known as solid bowl centrifuge) separates continuously solid materials from liquids in the slurry, and therefore plays an important role in the wastewater treatment, chemical, oil, and food processing industries.
Solid-liquid separation is a common manufacturing process and Shenzhou has more than 45 years of experience in decanter centrifuge uses to meet this requirement in various industries. Together with our industry know-how and specialist process experience from all over the world, Alfa Laval can match your exact needs for each particular application and installation.

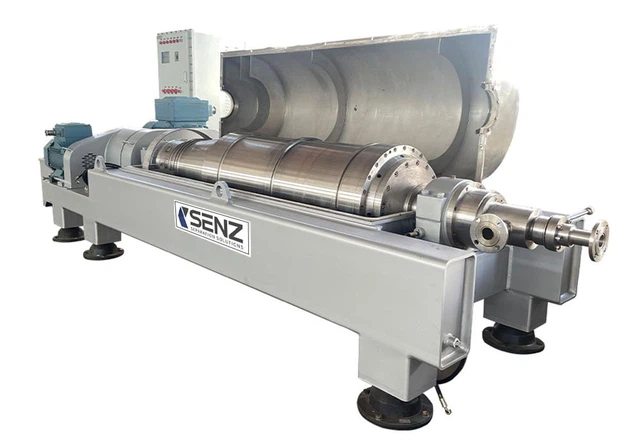

How Does a Decanter Centrifuge Work?
Decanter centrifuge is mainly composed of a feed tube, a bowl, a screw conveyor, and solid/liquid phase discharged outlets. In the separation process, the raw material is pumped into the bowl (also called a rotating drum) through the feed tube. Then, the bowl and the screw conveyor rotate at a high speed in the same direction at a differential speed. By centrifugal force, the solid particles with higher density are collected and compacted on the wall of the bowl, then be pushed to the outlet of the bowl by the screw conveyor. The clarified liquid leaves through a paring disc (internal centripetal pump). Eventually, the separation of the solid and liquid is achieved.

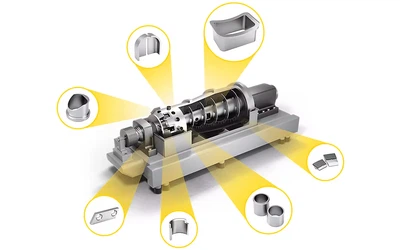

● Scroll Flight Tiles (brazed carbide/steel assembly)
● Feed and Discharge Nozzles
● Scraper Bars & Plows
● Wear Tile Platelets
● Screen Bars
● Hardfacing Materials
Features of Decanter Centrifuges

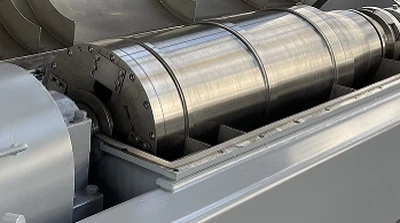

DRUM
The drum of the decanter can be made of SS304 or SS316, or it can be centrifugal cast with duplex stainless steel 2205 or 2304.
Flexible pond depth adjustment for different material separation.
solid discharger
The solids discharge port is made from Tungsten carbide inserts, the
anti-abrasion will extend the life.
BALANCING PROCESS
3 Stage balancing process to maximize the balance of the centrifuge
include 1800RPM low speed balancing and real operation high speed
balancing as well as the assembly balancing.
SCREW
The Screw is protected by interchangeable Tungsten Carbide Tiles for
longer life and easy maintenance
The mud distribution port is made from Tungsten carbide inserts, the
anti-abrasion will extend the life for heavy mud.
srew CONVEYOR
The screw is made from stainless steel with heat treatment, and the
opening impeller will improve the centrifuge capacity. Single Lead or
double lead screw is optional
TWO MOTORS
Two motors in one side to give more space for the operator to do
maintenance.
The bearings are premium SKF bearings for reliable and longer
operation. The automatically lubrication system is available for option
Application of decanter centrifuge

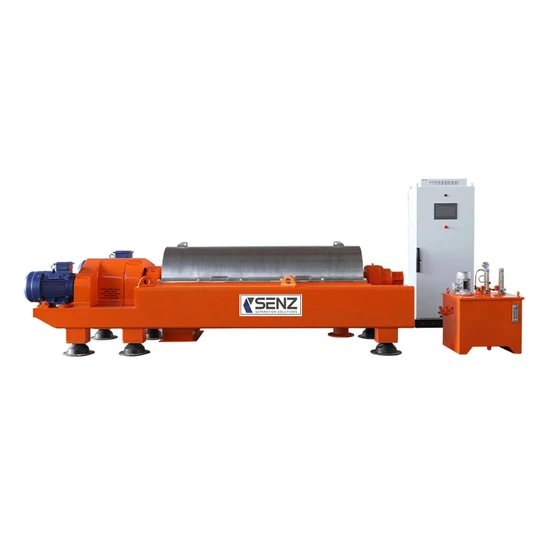

Wastewater Treatment
Chemical industry
Mining, Heavy oil and Mineral oil Industry
Food Industry
Fats, oils, animal proteins / biofuels
Separation technology for the beverage industry
Jinhua Shenzhou Centrifuge Co., Ltd. is one of the most professional centrifuge with other functions manufacturers and suppliers in China, featured by quality products and competitive price. Please rest assured to wholesale cheap centrifuge with other functions for sale here from our factory. Contact us for customized service.
