Jinhua Shenzhou Centrifuge Co., Ltd. is one of the leading manufacturers and suppliers of tapioca extraction centrifuge in China. Please feel free to wholesale customized tapioca extraction centrifuge at competitive price from our factory. For more cheap products, contact us now.

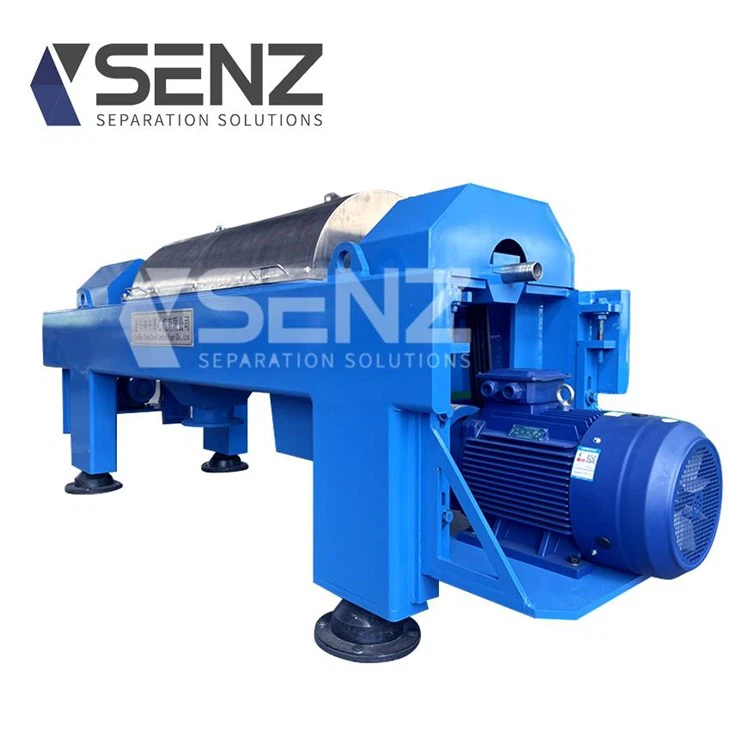

Shenzhou Decanter Centrifuge for Tapioca Production Process

The main challenge in separating Tapioca lies in the fact that it is often closely associated with other components such as protein and fiber. Traditional separation methods like sedimentation, filtration, and centrifugation are not efficient enough to separate these components effectively.

Shenzhou is professional in developing different kinds of decanter centrifuge equipment. For the tapioca production process, Shenzhou has specially developed a food-grade tapioca extraction centrifuge to realize the automatic separation and extraction of tapioca. decanter centrifuge, effectively solved this problem. This machine utilizes centrifugal force to separate the different components of a mixture based on their density and particle size. The tapioca particles are forced to the outer edge of the centrifuge and collected separately from the other components.

The use of this machine in separating tapioca is crucial because it allows for a more efficient and effective separation process compared to traditional methods. also results in a higher yield of pure tapioca, which is essential for food and industrial applications. Furthermore, the decanter centrifuge can be used for continuous separation, ensuring a steady supply of high-quality starch.

Product Details

Product Name:	Decanter Centrifuge	Model No.:	LW450
Origin:	China	Brand Name:	Shenzhou
Marketing Type:	Hot Product 2022	Condition:	New
Application:	Solid-Liquid Separation	Certification:	CE/ISO9001/GMP
Voltage:	220V/380V/Customized	Warranty:	1 Year
Key Selling Points:	Easy to Operate	Main Power:	Model(See below technical parameter)
Operation:	Automatical Continuous Operation	*Dimension(LWH):*	Model(See below technical parameter)
Bearing:	NSK/SKF Bearing	Weight:	Model(See below technical parameter)
Motors:	Double	Max Speed:	Model(See below technical parameter)
Core Components:	PLC, Bearing, Gearbox, Motor	Material:	304/316L/2205 Ect
Transport Package:	Wooden Box	Production Capacity:	1t/h-100t/h
Video outgoing-inspection:	Provided	Control Type:	PLC Control Box
HS Code:	8421192000	Customization:	Logo/Packaging / Graphic / Color

Drive Type: VFD + PLC + HMI

Product Description

It is one of the models with more users and mature technology, LW450 has two types of length diameter ratio and different height, medium size, medium rotating speed 2800-3000r/min, suitable for medium processing capacity. The user selects according to the actual situation.

The user can reasonably select the working parameters of the centrifuge according to the physical properties of the separated material (suspension), separation requirements, treatment capacity, process requirements and other factors, so as to obtain satisfactory separation effect and economic benefits. Color and material can be customized

Technical Parameter

Model	Diameter	Length	Max Speed	L/D ratio	G-force	Capacity	Main motor power	Weight	Dimension （*LWH*）
Model	(mm)	(mm)	(r/min)	L/D ratio	（g）	(m3/h)	(kw)	(kg)	(mm)
LW250*720	250	720	5000	3	3360	0.3-1.8	7.5	850	19151250680
LW250*960	250	960	4500	4	2722	0.5-5	7.5	950	21201250680
LW300*900	300	900	4200	3	2964	1-6	11	1160	21501300900
LW300*1200	300	1200	4000	4	2784	2-6	11	1350	24501300900
LW355*1160	355	1160	3600	3.3	2576	2-8	15	1400	24701350830
LW355*1460	355	1460	3600	4	2576	2-10	15	1800	27501350830
LW400*800	400	860	3200	2.2	2294	2-8	15	1600	22701480980
LW400*1200	400	1200	3200	3	2294	3-12	18.5	1800	273016001080
LW400*1600	400	1600	3000	4	2016	3-15	22	2000	313016001080
LW450*1350	450	1350	3000	3	2268	4-20	30	2000	287017001130
LW450*1800	450	1800	2800	4	1976	4-25	37	2500	332017001130
LW500*1250	500	1250	2800	2.5	2195	5~25	37	2500	277018001170
LW500*1500	500	1500	2800	3	2195	5~30	37	2680	302018001170
LW500*2000	500	2000	2500	4	1750	5-35	45	4000	352018001170
LW530*1855	530	1855	2600	3.5	2006	5-38	55	4680	388513501600
LW530*2120	530	2120	2400	4	1709	5-40	55	4800	415013501600
LW550*1855	550	1855	2600	3.5	2006	5-35	55	2680	388513501600
LW550*2120	550	2120	2400	4	1709	5-40	55	4000	415013501600
LW650*1950	650	1950	2200	3	1761	6-45	75	5000	484015101720
LW650*2600	650	2600	2000	4	1456	6-65	90	6000	5490-1510*1720
LW720*2160	720	2160	2000	3	1612	7-80	120	6000	520016001800
LW720*2880	720	2880	2000	4	1306	7-90	120	8000	310016001800
LW760*2280	760	2280	2200	3	2060	10-90	110	10000	489219501610
LW760*3040	760	3040	2000	4	1702	10-120	132	12500	565219501610
LW800*2400	800	2400	1800	3	1451	20-100	150	12000	582020001300
LW800*3200	800	3200	1800	4	1451	20-120	150	13000	710020001300

Main Technical Features

1. Industrial design

Whole machine set design follows concept of advanced industrial design,ensures stability, functionality and safety of whole machine.Also effectively absorbs shear force of dynamic load during operation.

2. Effectively ease resonance during rotating of bi-rotor

When centrifuge works,there is no obvious first-order and two-order resonance regions within designed speed range,meanwhile ,whole vibration intensity of bearing seat is definited within 2mm/s-4mm/s.All of this eliminates extra fatigue damage to components and assembly units from high frequency vibration during operation and sudden vibration when shut down.

3. Thoroughly eliminate phenomenon of liquid ring stalling

Phenomenon of liquid ring stalling happens during heavy duty boot or shutdown process of complete set machine,especially for LW550 and even larger models,It would makes bounce or wild shake,causes extra impact fatigue damage to main bearings,screw bearings and inner parts of rotary bowl.Fortunately ,our engineers have solved this problem thoroughly.

4. Unique technique adopt in main component work-blanks

The manufacturing methods of main component work-blanks are adopt centrifugal casting technique and overall mould-making forging technique,thoroughly avoid risks such as inter-granular corrosion and relaxation of residual stress release in welding joint.

5. Main bearing selection

We use origin bearings of international first-line brands such as SKF,FAG and so on.

6. Constant temperature detection

All fashioning components and assembly units are detected in constant temperature condition,to make sure of actual processing quality meets the requirements of designed precision accuracy.

7. Inter-change ability

Whole machine physical design and processing technique adopted in critical position,ensure all assembly units and bowls of the same centrifuge model interchangeable.It is not only easy to maintain ,but also greatly improve the reliability and safety of equipment.

8. Simplyand safely in bearing disassemblement

One layer of oil film is injected into contact surfaces between bearing and work-piece by high-pressure,during disassemblement bearing from the machine.which would fundamentally eliminate friction within different parts.As a result,it would reduce 90% of pulling force and lower the risk of damage to high-precision parts when disassemble bearing.

9. Main bearing lubrication system

There are two kinds of lubrication system for specific product models :

A thin oil lubrication

* Oil pump offers an uninterruptedly power to ensure oil works circularly;

* Jet oil lubrication constantly clean and lubricate bearings and reduce temperature;

* Oil filter system ensure lubricant’s cleanliness;

* Oil pressure energy storage system ensure lubrication pump offers an extra oil supply(the pressure is no less than 0.4Mpa) for 5-6 minutes,when power fails accidentally;

* Constant temperature system is available.

B grease lubrication

* Adopt a grease with properties of extreme pressure resistance ,oxidation resistance ,abrasion resistance,water scour

resistance,corrosion-proof and high temperature resistance.

* Optional automatic grease system fills grease on main bearing at designed hours and quantity.

10. Main bearing BH device (patent design)

There are two spare safe bearings at either end of main bearing.When machine works well,they keep certain clearance from bearing inside track to chief axis.When unexpected condition occurs,main bearing got damaged or circle center deviation causing an amplitude of vibration reaches to designed clearance,safe bearings begin to work as main bearing Meanwhile,computer automatic control system would get a feedback of abnormal vibration value on bearing position immediately then activates emergency shutdown and goes a smooth shut down.This system protects machine free from damaging and ensure production safety.

11. GSRL feeding device (potent design)

New design of internal spiral core tube has got following achieves.Without reducing centrifugal acceleration,shorten triangle belt's traction time,reduce disorder of swirling flow and extend separation time.Meanwhile increases inner working pressure of centrifuge,and restrains liquid foaming.

Why Choose Shenzhou Decanter Centrifuge

Reliable Quality

The bowl (core component) is made of duplex stainless steel by centrifugal casting process, and its performance is superior to conventional 304 and 316. All weld joints have undergone flaw detection and thermal treatment, and are provided with certificates of conformity or records for traceability.

Stable Operation

The dynamic balance precision of the centrifuge is superior to the standard, so that the centrifuge can be operated smoothly and its longevity is extended. The noise is < 85 dB, the vibration intensity is < 7.1 (load) and 4.5 (no-load). It is equipped with dual overload protection device to ensure safe operation.

Long Service Life

The screw conveyor and bowl adopt of the most advanced, reliable and convenient wear-resistant treatment technology and structure in China. All bearings adopt original imported NSK/SKF bearings. The electric control box is made of electrical elements of famous brands such as Siemens and Schneider.

High Degree of Automation

Shenzhou decanter differential speed automatic control technology can automatically adjust the screw conveyor’s differential speed, to prevent overload and blockage. The complete machine is equipped with bearing temperature sensor and vibration sensor, and is provided with alarms for main motor overload, differential over torque, low differential speed, etc. Meanwhile, its supporting frequency conversion (flameproof) control cabinet can realize automatic start and stop with one key.
