Jinhua Shenzhou Centrifuge Co., Ltd. is one of the leading manufacturers and suppliers of wastewater centrifuge in China. Please feel free to wholesale customized wastewater centrifuge at competitive price from our factory. For more cheap products, contact us now.
why choose Shenzhou-SENZ
Shenzhou Group is a professional in design and manufacturing, trading, and exporting company in the field of liquid and solids separation equipment, we are committed to providing customers with high-quality, safety and best performance centrifuges. We are certified to ISO 9001, CE, TUV, EAC and other international standards.
We Are The Earliest Centrifuge Manufacturer In China
Shenzhou Group was Established In 1980, conveying an Area Of 80000M2 ,there are 2500 Staffs, 200 of them are technicians and engineers. It has obtained TUV, CE and ISO and many technology invent patent. We are on of the world's leading manufacturers of decanter centrifuge, disc centrifuge, tubular centrifuge, separation systems and drying equipment. now there are over 180 series or decanter centrifuges and disc separators used home and abroad, Including U.S.A, Canada ,Australia, Russia, Brazil, Singapore and so on totally 70 Countries.
We own various kinds of inspection and testing facilities with value Over USD10 Millio, We also welcome OEM and ODM orders.
Number Of Patent
years experience
Global Projects
Countries Covered

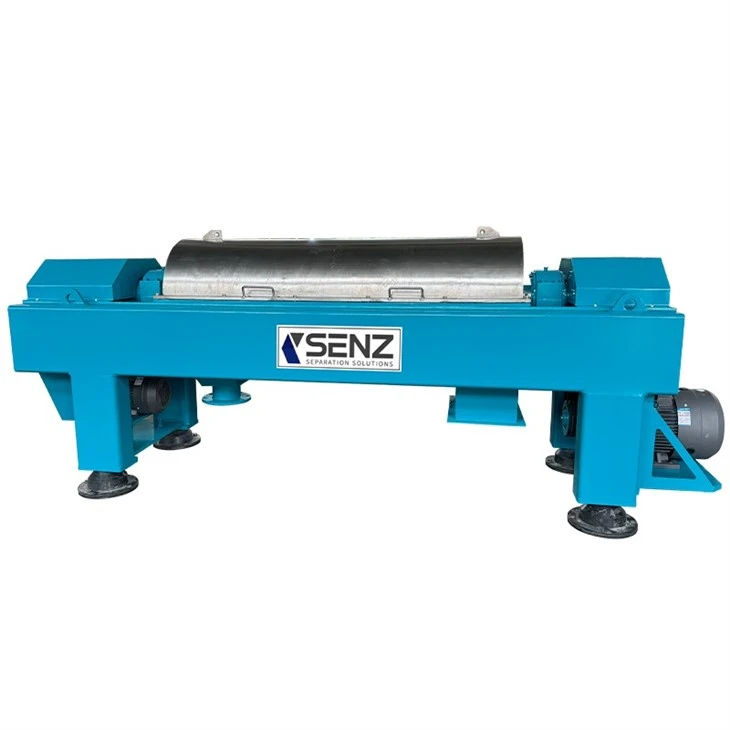

Decanter Centrifuge Separator--wastewater centrifuge
The horizontal screw discharge sedimentation centrifuge can continuously feed, separate and discharge at full speed. It has the characteristics of compact structure, easy sealing, stable operation, low noise, large processing capacity, low energy consumption, high degree of automation, low labor intensity, easy operation and maintenance, and wide adaptation range.
operating principle
product key technologies
Two Phases Separation Principle:
The feed suspension is introduced through an inlet pipe into the feed zone of the conveyor where it is accelerated and directed into the interior of the bowl. The settled solids are conveyed axially towards the small end of the bowl by means of the screw conveyor, which rotates at a slightly different speed than the bowl. On the way to the discharge ports the solids are lifted out of the pond up along the dry beach. The solids are finally discharged from the bowl through the discharge ports into the collecting chamber of the casing that surrounds the bowl. From there the solids are removed by gravity through the outlet funnel. The liquid phase forming a hollow cylinder due to the centrifugal force, and flows towards the large end of the bowl. There the liquid overflows adjustable plate dams into the centrate chamber of the casing and is discharged by gravity.
Three Phases Separation Principle:
The light liquid phase is discharged into the casing through radial holes in the large end hub. The heavy liquid phase is discharged through axial holes in the large end hub. The liquid radius for the light liquid phase is smaller than the radius for the heavy liquid phase. The liquid level is controlled by plate dams. In order to prevent the light liquid phase from leaving the bowl through the heavy liquid phase outlet, a separating plate is placed on the inside of the large end hub. The heavy liquid phase has to pass under the separating plate before being discharged into the casing. The liquid radius for the heavy liquid phase is controlled by plate dams. The solids are discharged in the normal way.
Structure of the Decanter Centrifuge Separator
Feeding
wastewater centrifuge material is fed into the distribution chamber of the screw conveyor through the feed pipe, where the material is smoothly accelerated and enters the rotating drum through the outlet of the screw conveyor.
Drum
Separate the materials in the cone and column drum. The drum rotates at a certain speed . The mixed liquid rotates under the drive of the drum, The denser solids in the liquid are deposited on the inner wall of the drum under the action of centrifugal force.
screw Conveyor
The screw conveyor and the drum rotate asynchronously in the same direction, and the separated solid is pushed toward the cone section along the axial direction.
oil station
For supplying lubricant to the host about two main bearing seat.Cooling and lubricating action,Ensure the main equipment run continuously and normally working.
detection device
The design can automatically detect temperature and vibration conditions while the machine is running.
Dual drive--ABB motors
Dual Motors drive and Dual Variable Frequency Converter drive to realize the function of soft starting and slow stop.
Technical Parameter Of LW500*2000 wastewater centrifuge
| Designation | LW500X1500-N | LW500X2000-N |
| Bowl diameter | 500 mm/20 in 500 mm/20 in | |
| Bowl length | 1500 mm/59 in 2000 mm/79 in | |
| Max.Speed | 3300 rpm 3200 rpm | |
| Typical speed | 2600 rpm 2500 rpm | |
| G force | 3049 2867 | |
| Capacity | 5-30 m³/h 5-35 m³/h | |
| Main drive motor | 45 kW 45 kW | |
| Back drive motor | 11 kW 11 kW | |
| Dimensions | 3020x1800x1170mm/119x71x46in 3520x1800x1170mm/139x71x46in | |
| Weight | 2680 Kg 4000 Kg | |
Performance advantage:
Performance advantage:
1, good adaptability: in the process to fully consider the material, the process of the centrifuge put forward a variety of special requirements, the main components of the implementation of the specific, adjustable optimization design. As long as the user explains the place of installation and use, the physical and chemical characteristics of material treatment, and the process requirements before purchasing the machine, we will provide the most suitable model for the user.
2, the degree of automation is high: the feeding, separation, unloading, and other processes of the centrifuge are continuously and automatically carried out under high-speed operation. The automatic control of centrifugal separation and centrifugal flushing process is realized by using programmable controller.
3, good operating stability: the differential used in the centrifuge is the planetary wheel differential, which has the characteristics of large torque and wide adjustment range.
4, strong technology: centrifuge adopts double motor double frequency energy feedback differential speed system control, flexible stepless adjustment of differential speed, and adjust the differential speed at any time according to changes in materials. Real energy saving products
Application
1.Breeding waste water
2.Petroleum drilling
3.Chemical wastewater
4.Mine watestwater
5.Food industry
6.Municipal wastewater
7.Contruction wastewater
separation effect
